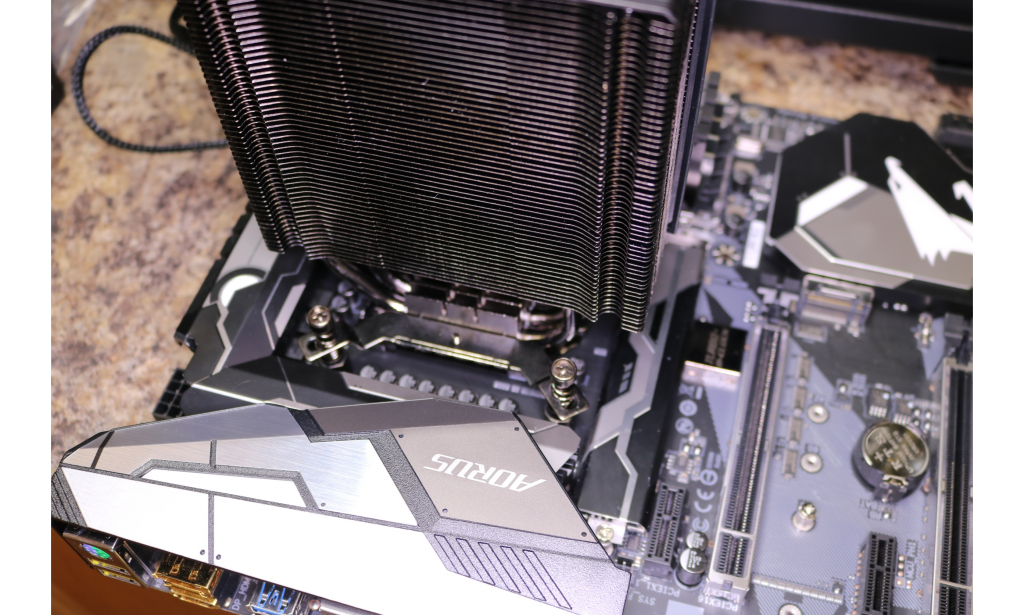

Once mounted you simply re-attach the included fan with the two mounting clips, and plug the 4 pin PWM connection into your motherboard CPU fan header. The 4 sprung screws then need to be screwed into the hex standoffs, to firmly mount the cooler. The four sprung loaded mounting pins can be adjusted for your socket by simply pushing the pins down and sliding them into place. You can apply your thermal paste, a small tube is included, and set the cooler down atop your CPU.
The Cooler Master Hyper 212 Black Edition comes with its fan mounted so this needs to be removed, a simple case of unclipping the two metal wire brackets. You then need to mount two brackets to the bottom of the heat sink, two sets are included, one for Intel and one AMD and these are simply screwed into the base of the cooler. With the backplate fitted there are four tall hex nuts standoffs that need to be installed, and a smaller hex to phillips head adapter tool is included, to ensure these standoffs are tightened properly.
The back plate can then be positioned through your motherboard. You start with the back plate, and by installing the four small square-ended screws, and mounting them to the back plate with four plastic clips.

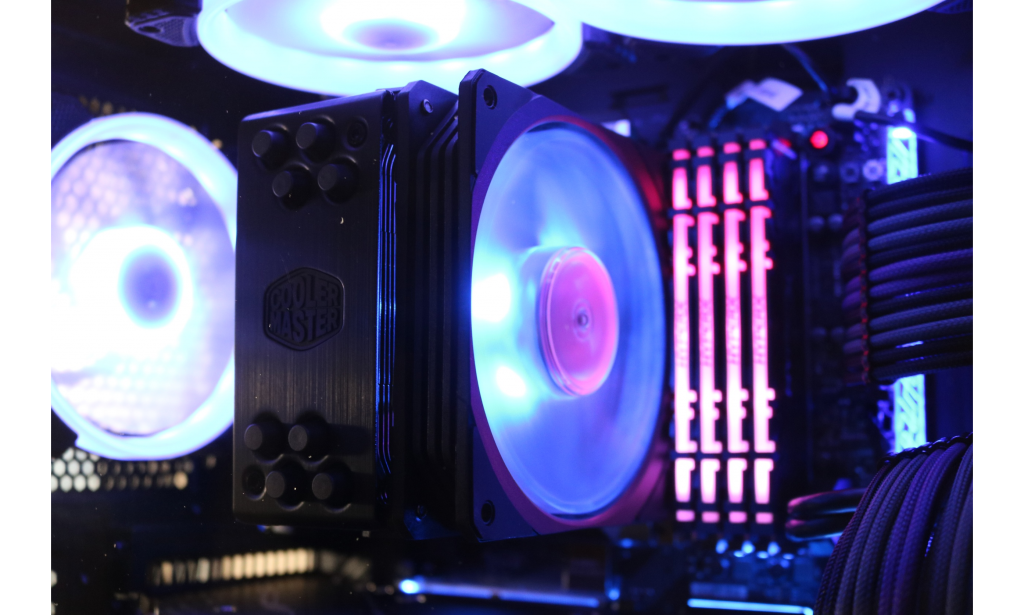

The Hyper 212 RGB Black Edition offers better installation and great performance, easily one of the best air cooling solutions. The legendary Hyper air cooler is back and better than before.
